Combined Type Tire Mobile Crushing Station

Combined Type Tire Mobile Crushing Station is widely used in mining ore crushing, construction waste recycling, construction aggregate production, highway, railway, road and bridge construction and other industries.

Applications: It is applied to the crushing of various hard rock materials and ore materials, such as granite, basalt, marble shale, sandstone, quartz, limestone, iron ore, copper ore, manganese ore, coal gangue, non-ferrous metal ore, pebble and construction waste of urban demolition.

350~425mmFeed Size 15~110t/hCapacity

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

01Product Brief Introduction

Multi-combination mobile crusher is a kind of combined mobile crushing station which installs a variety of equipment on the mobile frame. There are commonly four combined mobile crushing stations and three combined mobile crushing stations. Combined mobile crushing station set coarse crushing, medium crushing, fine crushing in one, without other equipment can independently complete the operation, economical, simple, suitable for small and medium production scale.

Wheel Mounted Mobile Crushing Station
Wheel Mounted Mobile Crushing Station
Wheel Mounted Mobile Crushing Station


02Product Brief Introduction

  • Strong complete set, reasonable combination and compact, very low requirements on the work site.

  • Steering traction shaft of combined mobile crushing station is convenient for road transportation and transition operation.

  • Combined mobile crushing station can be directly opened into the raw material production site to reduce material transportation costs.

  • Multi-combination mobile crusher can be used for host switching to meet user's personalized needs.

Wheel Mounted Mobile Crushing Station

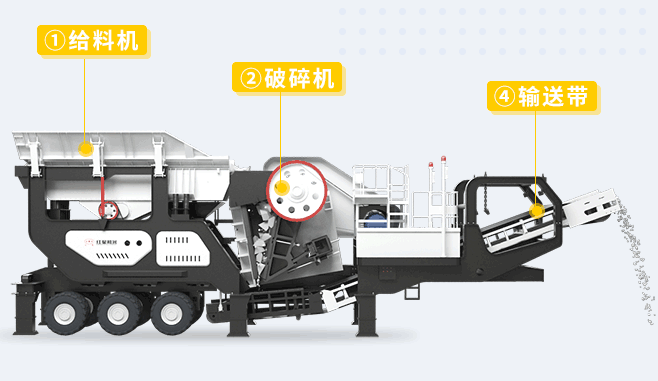

03Working Principle

Wheel Mounted Mobile Crushing Station

The motor drives movable jaw assembly do reciprocating motion according to the desired trajectory under the action of belt and pulley. The angle between toggle plate and movable jaw increases when movable jaw moves up and the movable jaw closes to the fixed jaw. The materials are crushed in this process. The angle between toggle plate and movable jaw decreases when movable jaw moves down and movable jaw moves away from fixed jaw under the action of the tension rod and spring, then products after being crushed are discharged from the discharge opening.

04Technical Parameters

Combined Type Tire Mobile Crushing Station

Item Unit ME46C24 ME57C24
Transportation Length mm 13700 14000
Transportation Width mm 2800 2800
Transportation Height mm 4500 4600
Ma×imum Length mm 14500 14650
Ma×imum Width mm 2800 2800
Ma×imum Height mm 5830 5980
Weight t 38 45
Tire Configuration   Dual-a×ial Dual-a×ial
Vibrating Feeder   GZD960×3800 GZD960×3800
Crusher   PE400×600 PE500×750
Discharging Belt Conveyor   B650 × 6.5M B650 × 6.5M
Belt Conveyor above Vibrating Screen   B650 × 10.5M B650 × 10.5M
Vibrating Screen   3YZS1237 3YZS1237

05Working Principle

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time
