Belt Conveyor

Belt conveyor is used to transfer stone aggregates and sand in mining, quarry, chemical industry, aggregate production, construction material recycling, powder grinding plant, ball mill plant etc.

Applications: Stone crusher is used for crushing over 120 kinds of rocks, such as limestone, granite, quartz, basalt, river stone, gold ore, iron ore, coal, gravel, aggregate etc. Different final output size could meet your different needs.

20-500 t/hCapacity 5.5-30KWMotor Power

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

01Product Brief Introduction

Belt conveyor made by our Shunky can convey many kinds of materials economically and efficiently. In industrial production, belt conveyor can be used as a link between two production equipments, which will realize the continuity and automation of production, improve efficiency and reduce labor intensity. The conveyor moves according to the principle of friction drive, and it has many advantages, such as large convey capacity, long convey distance, stable conveyance, no relative motion between conveyor and material, little noise, simple structure, convenient maintenance, energy saving and standardized parts.

Belt Conveyor
Belt Conveyor
Belt Conveyor


02Product Brief Introduction

  • Large convey capacity and long convey distance. It is easy to convey granular, powdery, small and packaged materials.

  • The length of belt conveyor is decided according to clients’ request.

  • Energy saving, simple structure, little noise and convenient maintenance.

Belt Conveyor

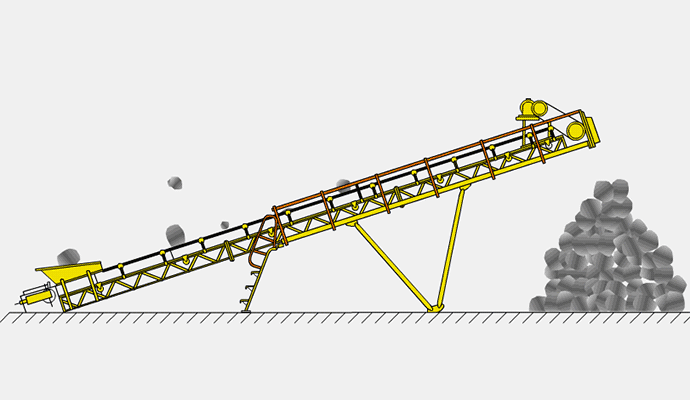

03Working Principle

Belt Conveyor

Belt conveyor is widely used in mining, metallurgy and coal industries to convey loose material or packaged material. According to the conveyor processing requirements, the conveying system can be one single machine or multi-conveyors or combined with other transfer equipments. The belt conveyor can be installed horizontally or obliquely to meet the needs of different transfer lines.

04Technical Parameters

Belt Conveyor

Belt Width(mm) 500 650 800 1000 1200 1400

Belt Length(m)

/Power(kw)

≤12/3 ≤12/4           ≤10/4           ≤10/5.5           ≤10/7.5           ≤10/15
12~20/3.5~5.5 12~20/4~5.5 10~15/4~5.5 10~20/5.5~11 10~20/7.5~15 10~20/15~18.5
20~30/5.5~7.5 20~30/5.5~11 15~30/5.5~15 20~40/11~22 20~40/15~30 20~40/30~45
Belt Speed(m/s) 1.3~1.6 1.3~2.0
Capacity(t/h) 40~80 80~120 120~200 200~320 290~480 320~600

05Working Principle

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time
