Linear Dewatering Screen

Linear dewatering screen is suitable for raw coal dewatering, classification, dewatering, mining screening, power plant screening, and material separation processes in new energy industries such as coal chemical industry in coal preparation plants.

Applications: Linear dewatering screen is suitable for raw coal dewatering, classification, dewatering, mining screening, power plant screening, and material separation processes in new energy industries such as coal chemical industry in coal preparation plants.

1-5mmFeed size 6-160t/hCapacity

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

01Product Brief Introduction

The main applications of the dewatering screen produced by Henan Shanky Machinery Co., Ltd. are: sand dewatering, desliming, coal sludge recycling, filter press isolation coarse, filtration isolation coarse, and dewatering and recycling of other very fine materials and other processes. With good effect, product durability, easy to disassemble and so on, and has a low frequency dewatering screen and high frequency dewatering screen and other models to meet different production requirements of the product. It is used with fine sand recycling machine to form a perfect fine sand recycling device, which can reduce the loss of fine sand in the process of sand washing machine.

Linear Dewatering Screen
Linear Dewatering Screen
Linear Dewatering Screen


02Product Brief Introduction

  • Low noise, easy maintenance.

  • Reasonable structure, sturdy and durable.

  • Good dehydration effect, safe and reliable.

  • Large screening processing capacity, high screening efficiency.

  • Light weight, easy to disassemble, easy to maintain, no sudden segment spring.

Linear Dewatering Screen

03Working Principle

Linear Dewatering Screen

It adopts double motor self-synchronous technology, universal eccentric block and adjustable amplitude vibrator. It mainly consists of screen box, shaker, support system and motor. Through the tape coupling respectively drive two mutually unrelated vibrators for synchronous reverse operation, the centrifugal force generated by the two sets of eccentric mass along the vibration direction of the superposition of the centrifugal force, reverse centrifugal offset, thus forming a single vibration along the vibration direction of the vibration excitation, so that the screen box to do for the reciprocating straight-line movement, so as to form the dewatering, desliming and recycling process.

04Technical Parameters

Linear Dewatering Screen

Model

Power

(KW)

Sieve size

(mm)

Sieve material

Feed size

(mm)

Capacity

(t/h)

External Dimensions

(mm)L x W x H

ZX1022

1.5×2

0.15-0.28

Polyurethane

screen or

High chrome

alloy mesh

1-5

6-35

2600x1500x1250

ZX1230

2.2×2

0.15-0.28

1-5

9-45

3000x1750x1350

ZX1533

2.2×2

0.15-0.28

1-5

12-65

3150x2000x1450

ZX1537

3.0×2

0.15-0.3

1-5

15-80

3800x2000x1500

ZX1842

3.7×2

0.15-0.5

1-5

20-90

4270x2300x1970

ZX2048

5.5×2

0.15-0.5

1-5

25-100

4850x2360x2350

ZX2442

5.5×2

0.15-0.5

1-5

25-120

4250x2900x2550

ZX2456

7.5×2

0.15-0.5

1-5

45-160

5600x2900x2550

Note: Technical parameters are subject to change without notice.

05Working Principle

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time

06There are a wide range of crushers to meet your various needs

Apron Feeder

Max.Feeding Size(mm):600-1500

Learn More

Three-axis horizontal vibrating screen

Max.Feed size:250mm

Learn More

Belt Conveyor

Capacity:20-500 t/h

Learn More

Would you like to know the equipment details and quotation?

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

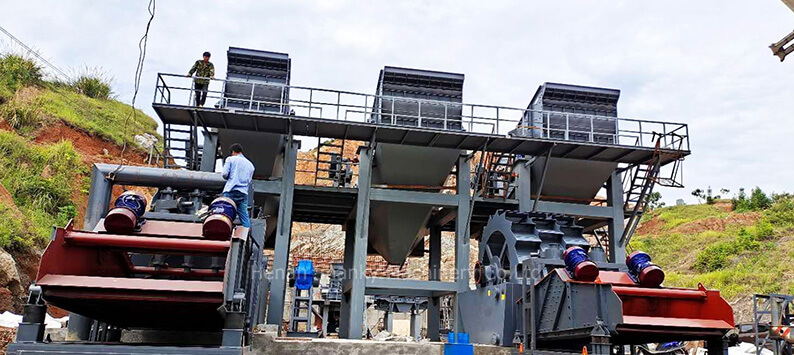

Direct attack on the customer's production site More scene+
