Three-axis horizontal vibrating screen

Suitable for various mines, quarries, and mobile screening stations

Applications: Applicable materials: limestone, dolomite, calcite, granite, basalt, diabase, shale, quartz, river pebbles, iron ore, coal gangue, non-ferrous metal ore, pebbles, etc

250mmMax.Feed size 280-1000t/hCapacity

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

01Product Brief Introduction

Three-axis horizontal vibrating screen is developed by absorbing the technology of the same type of vibrating screen at home and abroad, because of the horizontal installation, occupying little space at the site, it is widely used in the industries of gold-administration, building materials, transportation and so on, and it is a very ideal equipment on the mobile crushing station. The three-axis drive can make the screen produce ideal elliptical motion, which has the respective advantages of circular vibrating screen and linear vibrating screen, and the three-layer side-arm box has increased the stress maximum area, which is suitable for coarse screening, fine screening of natural aggregate and crushed aggregate, and has the features of good screening permeability, large processing capacity, small installation height, etc., and it is the ideal equipment for all kinds of mines, quarries, and mobile screening stations.

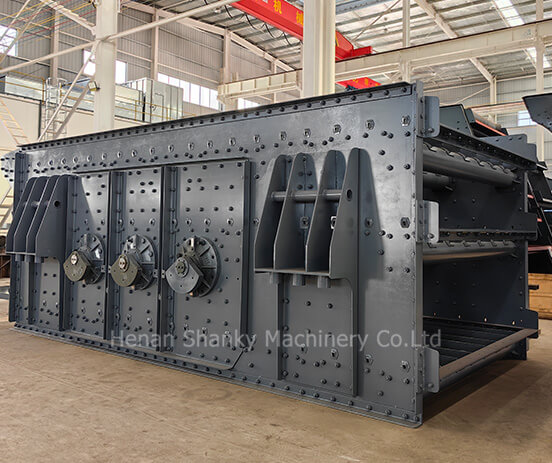

Three-axis horizontal vibrating screen
Three-axis horizontal vibrating screen
Three-axis horizontal vibrating screen


02Product Brief Introduction

  • Incredible throughput

  • Incredible efficiency

  • Energy conservation

  • Easy to maintain

  • Super exciting force

  • Modular installation

  • Heavy duty high strength

  • Low space proportion

Three-axis horizontal vibrating screen

03Working Principle

Three-axis horizontal vibrating screen

The three-axis elliptical horizontal vibrating screen is a screening equipment that uses a three-axis eccentric exciter as the excitation source, a rubber support spring as the elastic element, and a screen box exciter as the movable part. The three axes of its vibrator are equipped with counterweight blocks with equal eccentric mass and same eccentric radius. The power is transmitted from the motor through a belt to the driving shaft, and then transmitted through a gear with a speed ratio of 1, causing the three shafts to rotate at the same speed, thereby generating excitation force and causing the screen box to undergo forced continuous elliptical motion. The material is driven by this movement and continuously throws along the circular direction on the horizontal screen surface. While throwing loose layers, it moves forward, completing the process of particle size classification and forward conveying in a cyclic manner.

04Technical Parameters

Three-axis horizontal vibrating screen

Model

Rotating speed

(r/min)

Screen layers

Screen size

(mm)

Max.Feed size

(mm)

Capacity

(t/h)

Motor Power

(kw)

2TSS1860

730-850

(Speed is adjustable)

730-850

(Speed is adjustable)

2

1800*6100

250

280-550

22

3TSS1860

3

1800*6100

250

280-550

30

4TSS1860

4

1800*6100

250

280-550

30

2TSS2060

2

1930*6100

250

350-800

30

3TSS2060

3

1930*6100

250

350-800

37

4TSS2060

4

1930*6100

250

350-800

37

2TSS2460

2

2400*6100

250

450-1000

37

3TSS2460

3

2400*6100

250

450-1000

45

4TSS2460

4

2400*6100

250

450-1000

45

05Working Principle

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time
