JCE European Jaw Crusher

It is mainly used in metallurgy, mining, chemical industry, cement, construction, refractory, ceramics and other industrial departments for medium and fine crushing of various medium hard ores and rocks.

Applications: various mineral ores and rocks which anti-pressure do not exceed 280Mpa

12-635Capacity T/H 30-160Power(kw)

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

01Product Brief Introduction

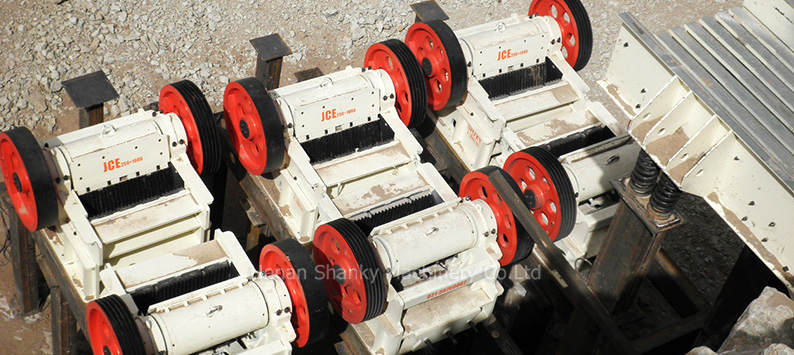

JCE series Jaw Crusher is ideally suitable for primary and secondary crushing and has already become the high-end product of Jaw Crusher. This machine absorbs advanced technology in the world and has unique advantages in aspects of structure design, working performance and service life, etc. JCE Jaw Crusher has become the most popular product in the world, which is the first choice to crush hard materials.

JCE European Jaw Crusher
JCE European Jaw Crusher
JCE European Jaw Crusher


02Product Brief Introduction

  • Manufacturing technique is of world class

  • High quality cast steel movable jaw assembly,Stable and durable.

    The more advanced movable jaw assembly makes it more durable. The movable jaw assembly is composed of high-quality steel castings and is driven by two large steel flywheel. In addition, the heavy eccentric shaft is also processed with forging stock, which makes JCE series jaw crusher have extraordinary reliability.

  • Integral cast steel bearing seat with tight fit and high strength.

    Integral cast steel structure is adopted for bearing seat to ensure the complete match with the frame.

  • "V" shape crushing chamber,Large feeding size.

    The crushing chamber adopts "V" shape structure, which makes the feeding port's actual width be in accordance with the nominal.

  • The adjustment of discharge port is faster and more convenient.

    Discharging port adjustment is quicker and more convenient. Wedge block adjustment device is easier, safer and faster.

  • Larger bearing specifications and higher bearing capacity.

    Larger and more wearable main bearing is used to lengthen the service life; The bearing capacity is higher and effective labyrinth seal also lengthens the lifespan.

  • The teeth protection plate increases the length of jaw plate.

JCE European Jaw Crusher

03Working Principle

JCE European Jaw Crusher

This series Jaw Crusher is widely used in mining, construction, metallurgical and chemical industries.The largest compression resistance of the material to be crushed is 280MPa, and the largest block of material to be crushed shall not be greater than required technical data.

04Technical Parameters

JCE European Jaw Crusher

Model

Opening

Size(mm)

Max.

Feeding

Size(mm)

Discharge

Opening

Range

(mm)

Speed of

Eccentric

Shaft(rpm)

Capacity

(t/h)

Motor

Dimension

(mm)

Model

Power

(kw)

Speed

(rpm)

JCE1302 180×1300 150 10-30 320 12-35 Y225M-6 30 980 1320×2150×1175
JCE1003 250×1000 220 20-40 330 15-50 Y225M-6 30 980 1400×1850×1310
JCE1303 250×1300 220 70-100 290 26-85

Y250M-6/

Y280S-6

37

/45

980 1450×2150×1175
JCE604 400×600 350 35-85 250 15-70 Y225M-6

37

/45

980 1920×1460×1840
JCE800×1060 800×1060 650 80-160 275 125-350 Y315L1-6 110 990 2923×2294×2865
JCE860×1100 860×1100 720 100-225 240 200-500 Y315L1-6 132 985 3300×2320×3120

05Working Principle

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time
