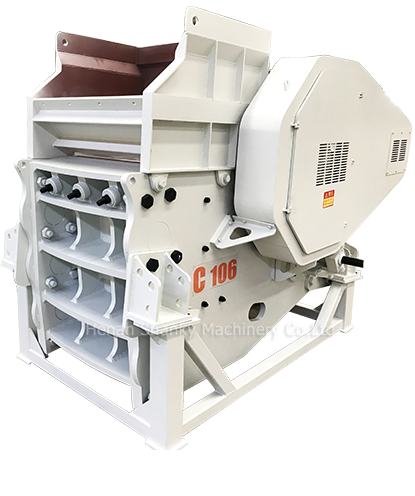

C series European jaw crusher

C European jaw crusher is widely used in mining, building materials, cement, metallurgy, road construction, chemical industry raw materials and other fields, especially suitable for crushing medium hardness materials, such as rock, ore and so on.

Applications: various mineral ores and rocks which anti-pressure do not exceed 320Mpa.

420 ~ 1200mmFeed particle size 80 ~ 1510t / hCapacity

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

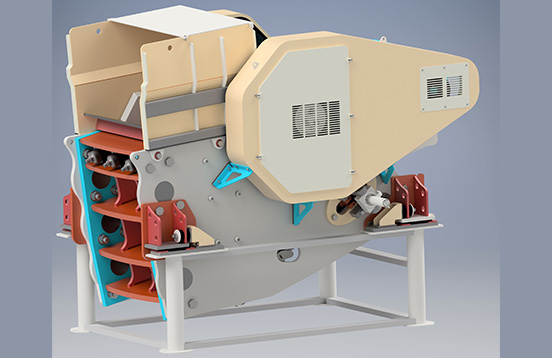

01Product Brief Introduction

The C series European jaw crusher is a new generation of high-efficiency jaw crusher developed by Zhengzhou Jemelon Mining Machinery Co., ltd. based on the advanced foreign design and our decades of experience in the crushing industry. This series of European jaw crusher has made great progress in structural design, production material selection, process improvement and other aspects, providing a solid technical foundation for efficient production, high structural strength and high stability of the equipment. As the preferred model for the new generation of hard and highly abrasive rocks and minerals, the C series European jaw crusher can provide modular supply solutions according to different working conditions of customers' on-site production to meet the production needs under various conditions.

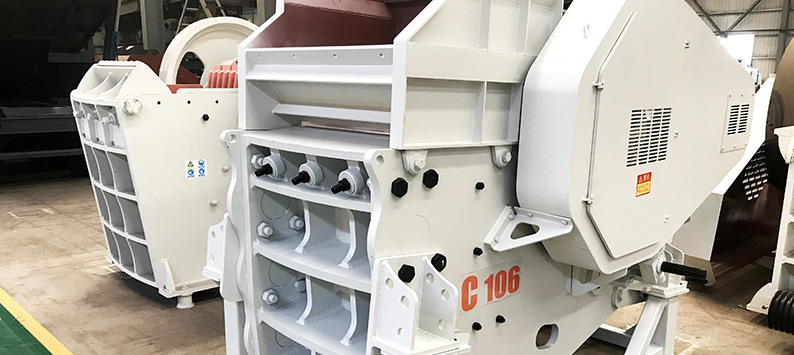

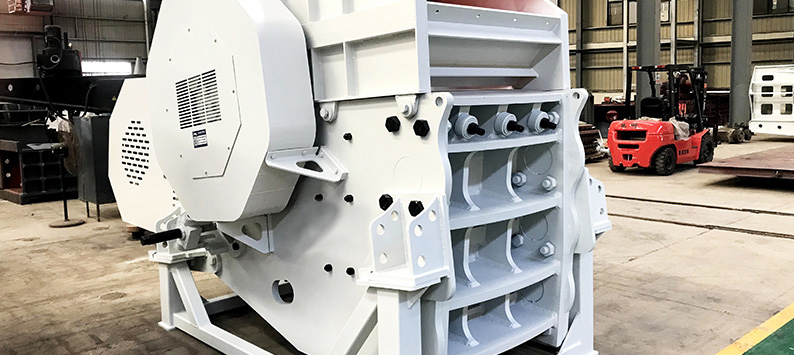

C series European jaw crusher
C series European jaw crusher
C series European jaw crusher


02Product Brief Introduction

  • The fuselage adopts non-welded frame structure with high strength wall panel and finished pin to form a firm frame, which improves the load tolerance.

  • The movable jaw assembly, belt wheel and flywheel are all made of high-quality cast steel or cast iron for exceptional durability. In addition, the series uses high-strength cast eccentric shafts and High quality bearing for unparalleled reliability.

  • The C-series European jaw crusher has optimized cavity design, feed port size and chamber height is highly coordinated, feed port length to width ratio through strict testing, can maximize avoid the phenomenon of clog.

  • The Strictly abide by the kinematic performance design, the use of large centrifugal force and steep elbow bevel design, so that the effective stroke at the bottom of the crushing chamber is larger, to ensure that the equipment has strong power.

  • The discharge opening adjustment device adopts double wedge block structure, which is convenient and reliable. Mechanical or hydraulic adjustment devices can be provided according to user requirements. It is convenient and fast to adjust the discharge port, reducing the adjustment downtime.

  • The integrated motor base design saves installation space. Motor base mobile design, so that the triangle belt longer service life.

  • The elastic stop block and rubber damping device are used to replace the rigid anchor connection, effectively absorbing the peak vibration load, thus reducing the mutual impact between the crusher and the foundation, reducing the fatigue damage to the foundation and improving the service life of the crusher.

C series European jaw crusher

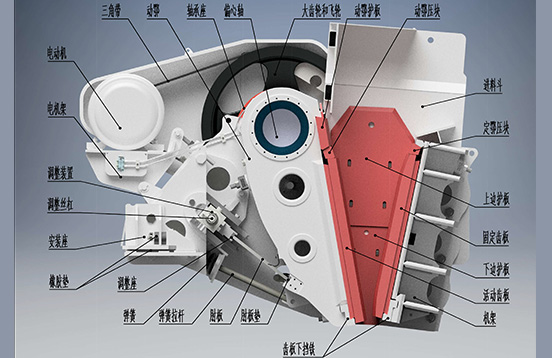

03Working Principle

C series European jaw crusher

The motor drives movable jaw assembly do reciprocating motion according to the desired trajectory under the action of belt and pulley. The angle between toggle plate and movable jaw increases when movable jaw moves up and the movable jaw closes to the fixed jaw. The materials are crushed in this process. The angle between toggle plate and movable jaw decreases when movable jaw moves down and movable jaw moves away from fixed jaw under the action of the tension rod and spring, then products after being crushed are discharged from the discharge opening.

04Technical Parameters

C series European jaw crusher

Model Feeding size(mm) Max. Feeding size(mm) Output size(mm) Capacity
(t/h)
Speed(r/min) Power(kw) Overal Dimension
(mm)
C80 520×800 420 60-150 80-290 350 75 2650*1540*1780
C100 760×1000 650 70-200 140-400 260 110 3670*2420*24900
C106 700×1060 600 70-200 140-420 310 110 3230*2440*2590
C110 850×1100 720 80-200 160-550 230 160 3800×2450×2550
C120 870×1200 740 100-200 260-650 230 160 3850×2800×3100
C125 950×1250 800 100-250 230-760 220 160 4100×2800×3440
C145 1100×1450 920 125-275 320-950 220 200 4400×3060×3210
C160 1200×1600 1020 150-300 410-1150 220 250 5700×3650×3550
C200 1500×2000 1200 175-300 610-1510 200 400 6500×3990×4260
CJ6310 630×1000 580 80-180 100-195 250 75 3763×2280×2644
CJ8711 870×1100 720 85-220 130-360 250 110 4124×2480×3020
CJ1113 1100×1300 940 120-260 360-780 220 160 4863×2762×3489
CJ1216 1200×1600 1050 165-320 450-1100 220 220 6700×4040×4465

05Working Principle

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time
